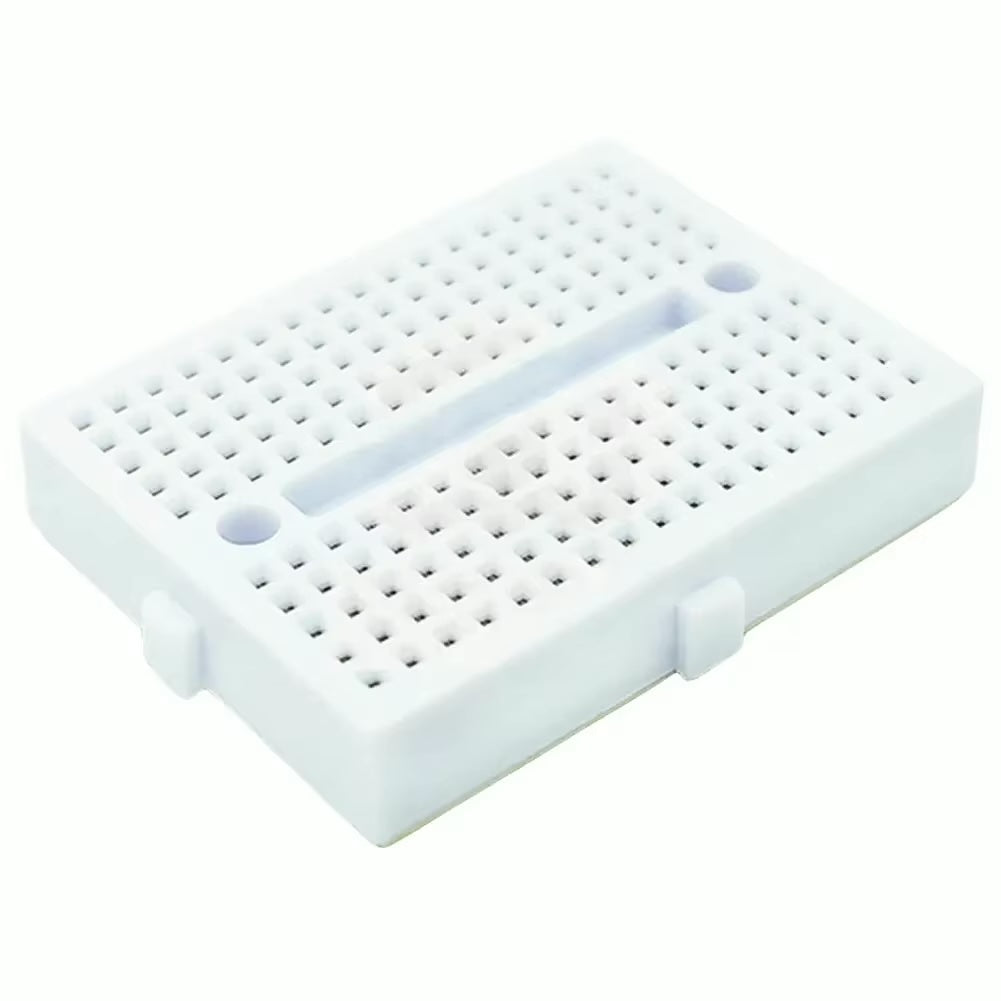

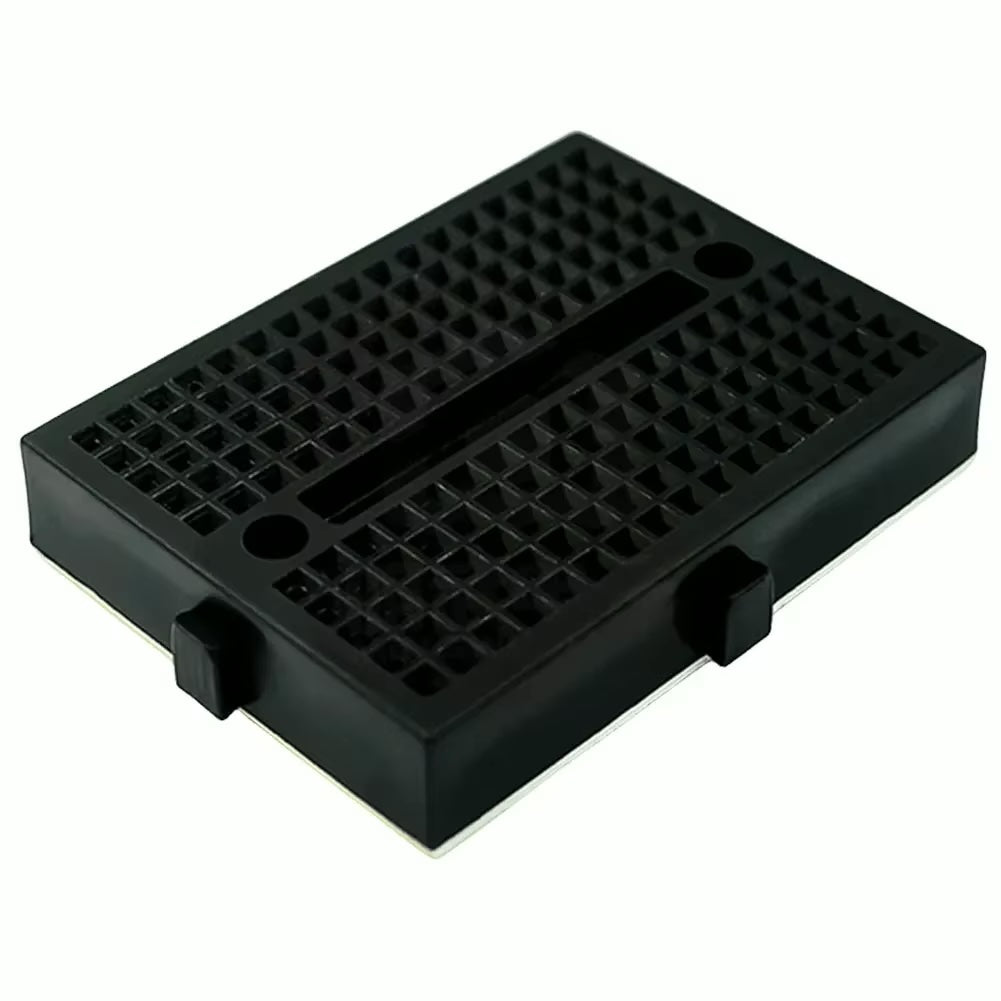

Breadboard (Mini)

Solderless breadboard is an essential prototyping tool, allowing you to add push-through components directly onto the board without the need for any soldering.

Features

This breadboard has 170 tie points. The central board is split in half with 17 lines of five points on each half.

The board is modular, so if your project expands to the point where one board isn't enough you can simply add another!

Comes in a variety of colours, great for livening up your project!

Specification:
Origin: Mainland China
Type: Module
Condition: New
Color: white, black.
Circuit board material: white ABS plastic
Internal contact material: phosphor bronze surface treatment
Board base: Self-adhesive tape
Total 170 connections: 2 columns, 17 channels per column, two 5-point rows per column
Socket spacing: 0.1 inches
Contact Type: Mixed Metal Strip
Extension Clip: Yes (can be extended with other boards)
Size: 47*35*9MM
Weight: 13g
